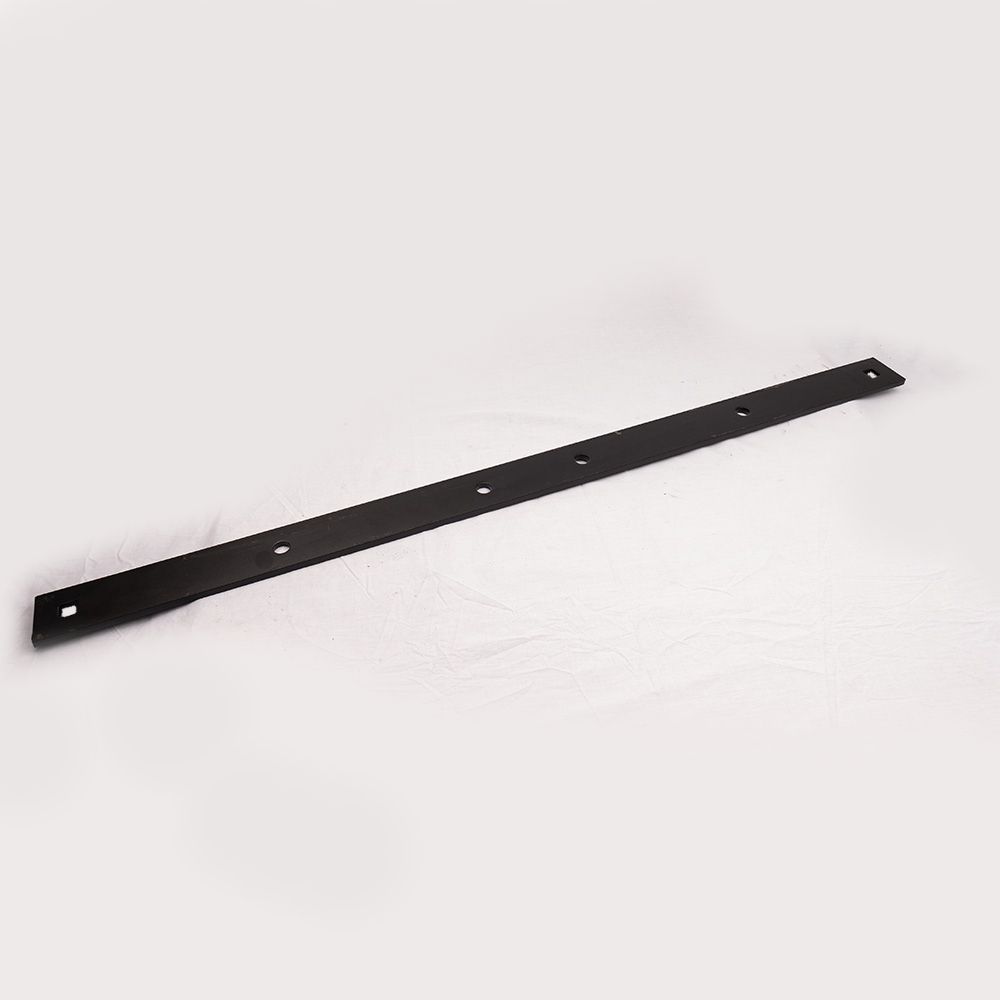

BEAM SLASHER SUPERIOR 7 FOOT SQUARE HOLE 7.08KG

ProductName: BEAM SLASHER SUPERIOR 7 FOOT SQUARE HOLE

ProductType: Superior Beam / head flat to suit 7 foot deck. – Square Holes – 20mm MOUNTING HOLES @ 152mm Centers (use BSA-S7059 – 16mm thick Spacer Beam)
Application: Slasher – Beam
Suitable For: Superior & Page
OEM Reference: S7060, S7038

SPECIFICATIONS

·        Thickness: 10 mm

·        Width: 75 mm

·        Length (from centre of hole): 1221 mm

·        Hole Diameter: N/A

·        Blade Profile: superior beam / head flat to suit 7′ decks etc.  square holes. 20mm mounting bolt holes @ 152mm centres

·        Step Down: N/A

·        Weight: 7.08 kg

COMPATIBILITY

·        Superior & Page –  Slasher Beam 7′ deck etc. square holes. 20mm mounting bolt holes @ 152mm centres (use BSA-S7059 Spacer Beam)

NOTE: TRIANGULAR BAR MODELS USE WITH 460mm (FROM CENTRE OF HOLE) LONG BLADES I.E BS-01602 ETC – CHECK

PRODUCTDESCRIPTION

This HeavyDuty 10 mm thick Boron Steel Slasher Beam. is a superior beam / head flat to suit  7′ decks etc. square holes. 20mm mounting bolt holes @ 152mm centre – also (use BSA-S7059 Spacer Beam)

Please Note: All beams length measurements are taken from the centre of the bolt blade holes…. Not an overall length. Please check mounting hole centers.

Soldindividually. Not sold as genuine.

Made inSpain. Boron Steel.

RELATEDPARTS:

BSA-S3393 Mounting Bolt (require 2)

BSA-100852 Nut (require 2)

BSA-S7059 Spacer Beam

BSA-S7058 – Top Beam
