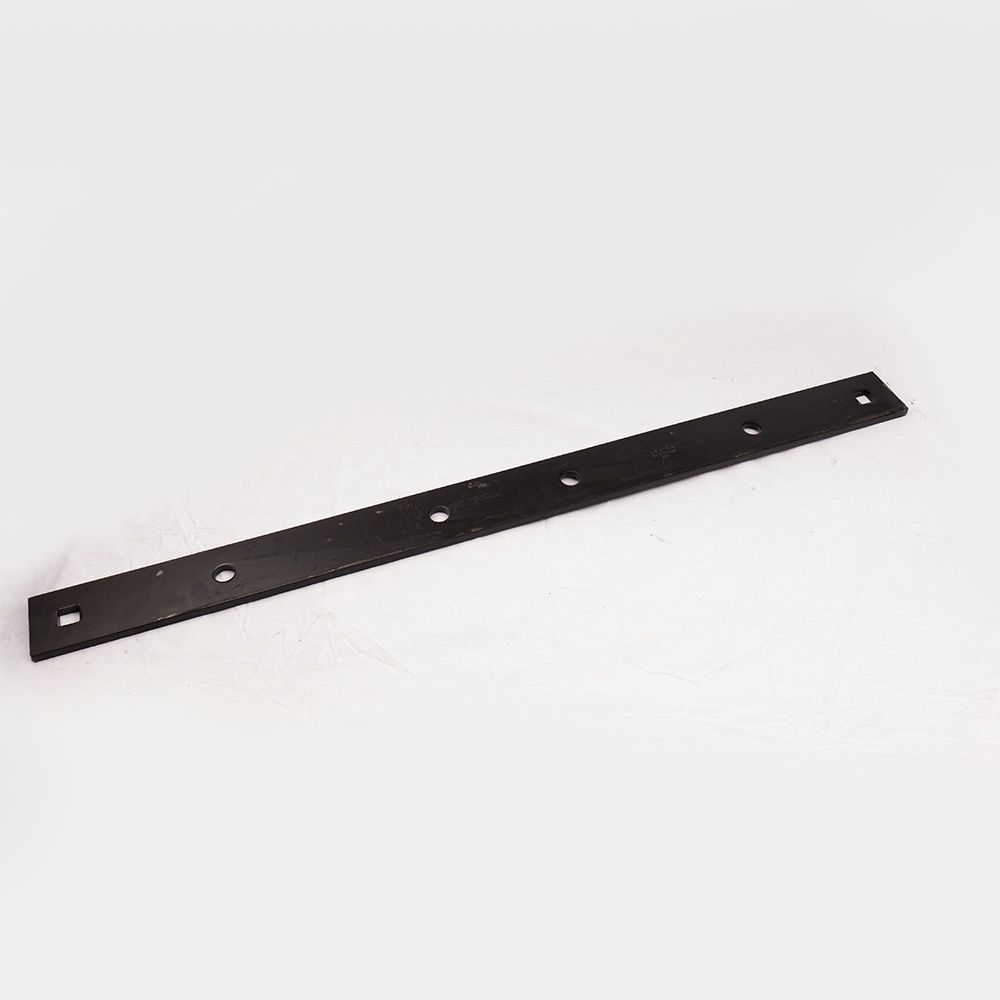

BEAM SLASHER SUPERIOR 6 FOOT DECKS, LXCT6 ETC – SQUARE HOLES 5.68KG

ProductName: BEAM SLASHER SUPERIOR 6 FOOT DECKS, LXCT6 ETC – SQUARE HOLES

ProductType: Superoir Beam / head flat to suit 6 foot decks, LXCT 6 Etc. – Square Holes – 20mm MOUNTING HOLES @ 152mm Centers (use BSA-S6081 Spacer Beam)
Application: Slasher – Beam
Suitable For: Superior & Page
OEM Reference: S2113, S6056

SPECIFICATIONS

·        Thickness: 10 mm

·        Width: 75 mm

·        Length (from centre of hole): 916 mm

·        Hole Diameter: N/A

·        Blade Profile: superior beam / head flat to suit 6′ decks, LXCT6 etc.  square holes. 20mm mounting bolt holes @ 152mm centres

·        Step Down: N/A

·        Weight: 5.68 kg

COMPATIBILITY

·        Superior & Page –  Slasher Beam 6′ deck, LXCT6 etc. square holes. 20mm mounting bolt holes @ 152mm centres (use BSA-S6081 Spacer Beam)

NOTE: TRIANGULAR BAR MODELS USE WITH 460mm (FROM CENTRE OF HOLE) LONG BLADES I.E BS-01602 ETC – CHECK

PRODUCTDESCRIPTION

This HeavyDuty 10 mm thick Boron Steel Slasher Beam. is a superior beam / head flat to suit  6′ decks,  LXCT6 etc. square holes. 20mm mounting bolt holes @ 152mm centre – also (use BSA-S6081 Spacer Beam)

Please Note: All beams length measurements are taken from the centre of the bolt blade holes…. Not an overall length. Please check mounting hole centers.

Soldindividually. Not sold as genuine.

Made inSpain. Boron Steel.

RELATEDPARTS:

BSA-S3393 Mounting Bolt (require 2)

BSA-100852 Nut (require 2)

BSA-S6081 Spacer Beam

BSA-S6058 ROUND HOLE BEAM – TOP
