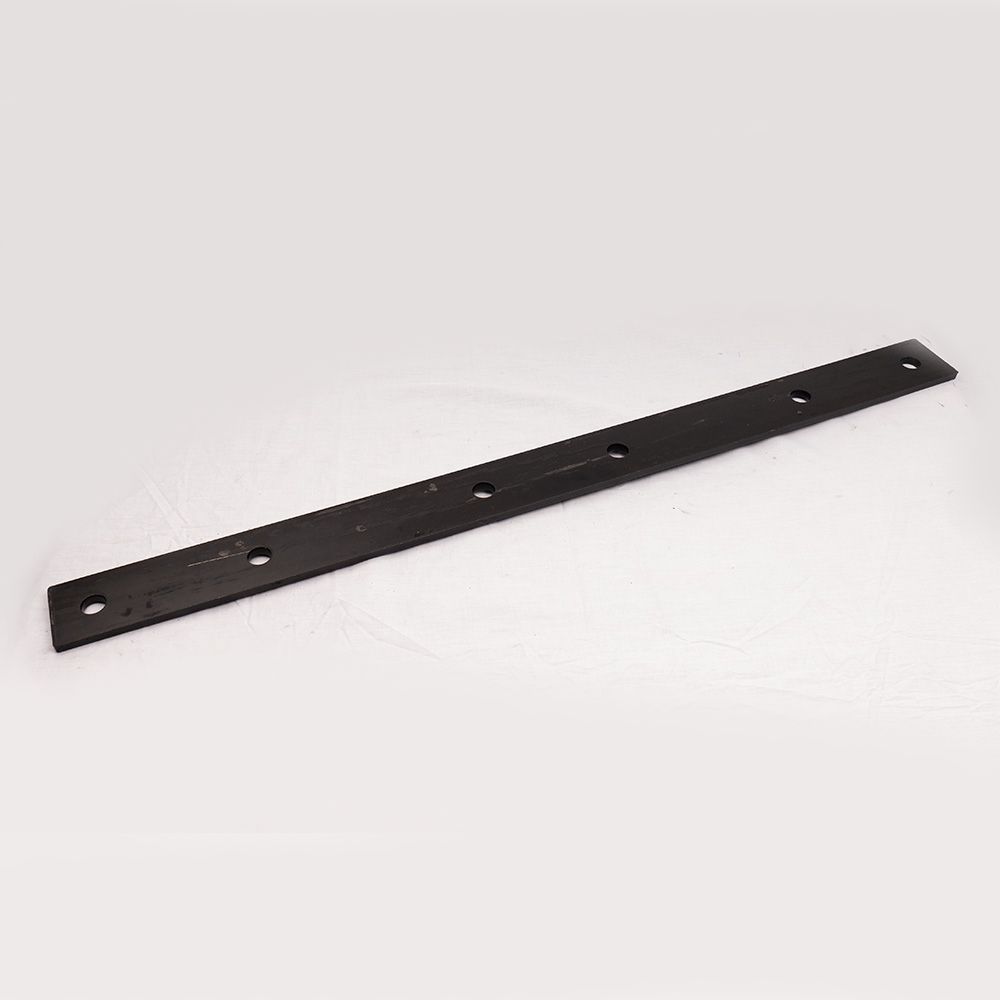

BEAM SUPERIOR 6 FOOT DECKS, LXCT6 ETC ROUND HOLE 5.82KG

ProductName: BEAM SUPERIOR 6 FOOT DECKS, LXCT6 ETC ROUND HOLE

ProductType: Slasher Beam Superior 6′ decks, LXCT5 Round Hole – 20mm MOUNTING HOLES @ 152mm Centers (use BSA-S6081 Spacer Beam)
Application: Slasher – Beam
Suitable For: Superior & Page
OEM Reference: S5068, 56054 (8mm thick)

SPECIFICATIONS

·        Thickness: 10 mm

·        Width: 75 mm

·        Length (from centre of hole): 916 mm

·        Hole Diameter: N/A

·        Blade Profile: superior beam / head flat to suit 6′ decks, LXCT5 round holes. 20mm mounting bolt holes @ 152mm centres

·        Step Down: N/A

·        Weight: 5.82 kg

COMPATIBILITY

·        Superior & Page –  Slasher Beam 6′ deck, LXCT5 round holes. 20mm mounting bolt holes @ 152mm centres (use BSA-S6081 Spacer Beam)

LXCT5 & LXCT8 – CHECK MOUNTING BEFORE ORDERING

NOTE: TRIANGULAR BAR MODELS USE WITH 460mm (FROM CENTRE OF HOLE) LONG BLADES I.E BS-01602 ETC – CHECK

PRODUCTDESCRIPTION

This HeavyDuty 10 mm thick Boron Steel Slasher Beam. is a superior beam / head flat to suit  6′ decks,  LXCT5 square holes. 20mm mounting bolt holes @ 152mm centre – also (use BSA-S6081 Spacer Beam)

Please Note: All beams length measurements are taken from the centre of the bolt blade holes…. Not an overall length. Please check mounting hole centers.

Soldindividually. Not sold as genuine.

Made inSpain. Boron Steel.

RELATEDPARTS:

BSA-S2112 Square Hole / Bottom Beam

BSA-S3393 Mounting Bolt (require 2)

BSA-100852 Nut (require 2)

BSA-S6081 Spacer Beam

 ALTERNATIVESEARCH TERMS

·        Mulchers, slashers, beam

·        Slasher beam

·        ASP slasher beam

SUPERIOR BEAM 6 FOOT DECK WITH ROUND HOLE SUITS MOST 6 FOOT SUPERIOR DECKS INCL. LXCT6 ETC

OEM REF: S6058, S6054 (8mm)

WEIGHT: 5.82KG

916mm LONG – FROM HOLE CENTRES, 990mm OVERALL LENGTH.

2 X 21mm MOUNTING HOLES @ 152mm CENTRES, 75mm WIDE X 10mm THICK

USE WITH:

BSA-S2113 SQUARE HOLE BEAM – BOTTOM

BSA-S6081 SPACER BEAM

BSA-S3393 MOUNT BOLTS X 2

BSA-100852 MOUNT NUTS X 2
