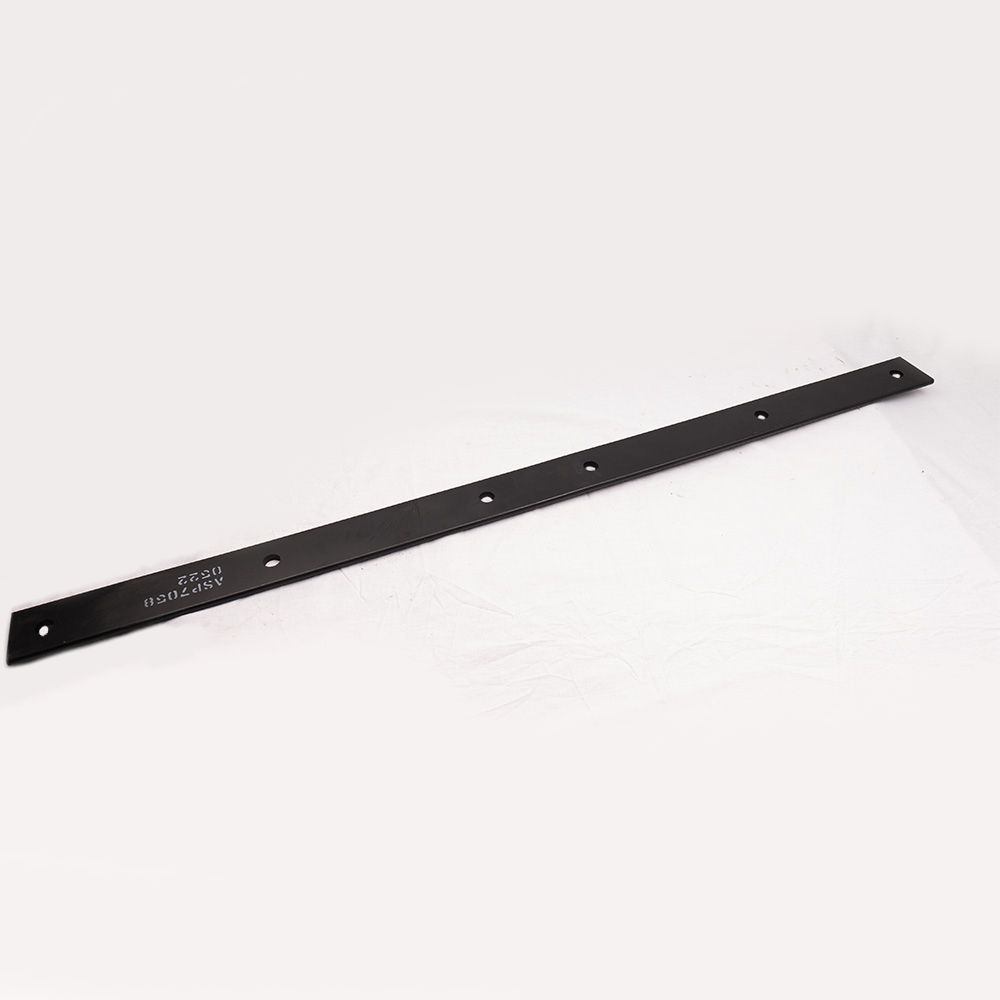

BEAM SLASHER SUPERIOR 7 FOOT – ROUND HOLE 7.6KG

ProductName: BEAM SLASHER SUPERIOR 7 FOOT – ROUND HOLE

ProductType: Superior Beam / head flat to suit 7 foot decks. – Round Holes – 20mm MOUNTING HOLES @ 152mm Centers (use BSA-S7059 Spacer Beam)
Application: Slasher – Beam
Suitable For: Superior & Page
OEM Reference: S7058, S7047

SPECIFICATIONS

·        Thickness: 10 mm

·        Width: 75 mm

·        Length (from centre of hole): 1221 mm

·        Hole Diameter: N/A

·        Blade Profile: superior beam / head flat to suit 7′ decks etc.  round holes. 20mm mounting bolt holes @ 152mm centres

·        Step Down: N/A

·        Weight: 7.6 kg

COMPATIBILITY

·        Superior & Page –  Slasher Beam 7′ deck etc. round holes. 20mm mounting bolt holes @ 152mm centres (use BSA-S7059 Spacer Beam)

NOTE: TRIANGULAR BAR MODELS USE WITH 460mm (FROM CENTRE OF HOLE) LONG BLADES I.E BS-01602 ETC – CHECK

PRODUCTDESCRIPTION

This HeavyDuty 10 mm thick Boron Steel Slasher Beam. is a superior beam / head flat to suit  7′ decks etc. round holes. 20mm mounting bolt holes @ 152mm centre – also (use BSA-S7059 Spacer Beam)

Please Note: All beams length measurements are taken from the centre of the bolt blade holes…. Not an overall length. Please check mounting hole centers.

Soldindividually. Not sold as genuine.

Made inSpain. Boron Steel.

RELATEDPARTS:

BSA-S3393 Mounting Bolt (require 2)

BSA-100852 Nut (require 2)

BSA-S7059 Spacer Beam

BSA-S6058 ROUND HOLE BEAM – TOP

 ALTERNATIVESEARCH TERMS

·        Mulchers, slashers, beam

·        Slasher beam

·        ASP slasher beam

BEAM SUPERIOR 7 FOOT DECK WITH ROUND HOLES – TOP BEAM

OEM REF: S7058, S7047

WEIGHT: 7.6KG

1221mm LONG FROM HOLE CENTRES, 1295mm OVERALL LENGTH

75mm WIDE X 10mm THICK

21mm MOUNTING HOLES @152mm CENTRES

USE WITH

BSA-S7060 BOTTOM BEAM

BSA-S7059 16mm THICK SPACER BEAM

BSA-S3393 MOUNT BOLTS

BSA-100852 MOUNT NUTS
