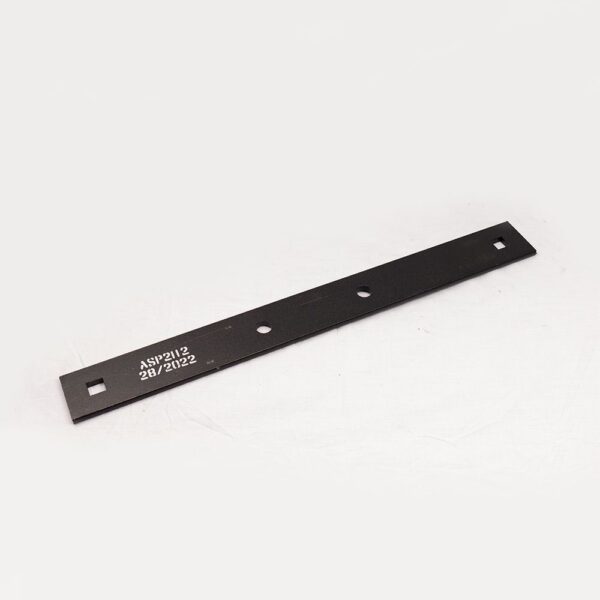

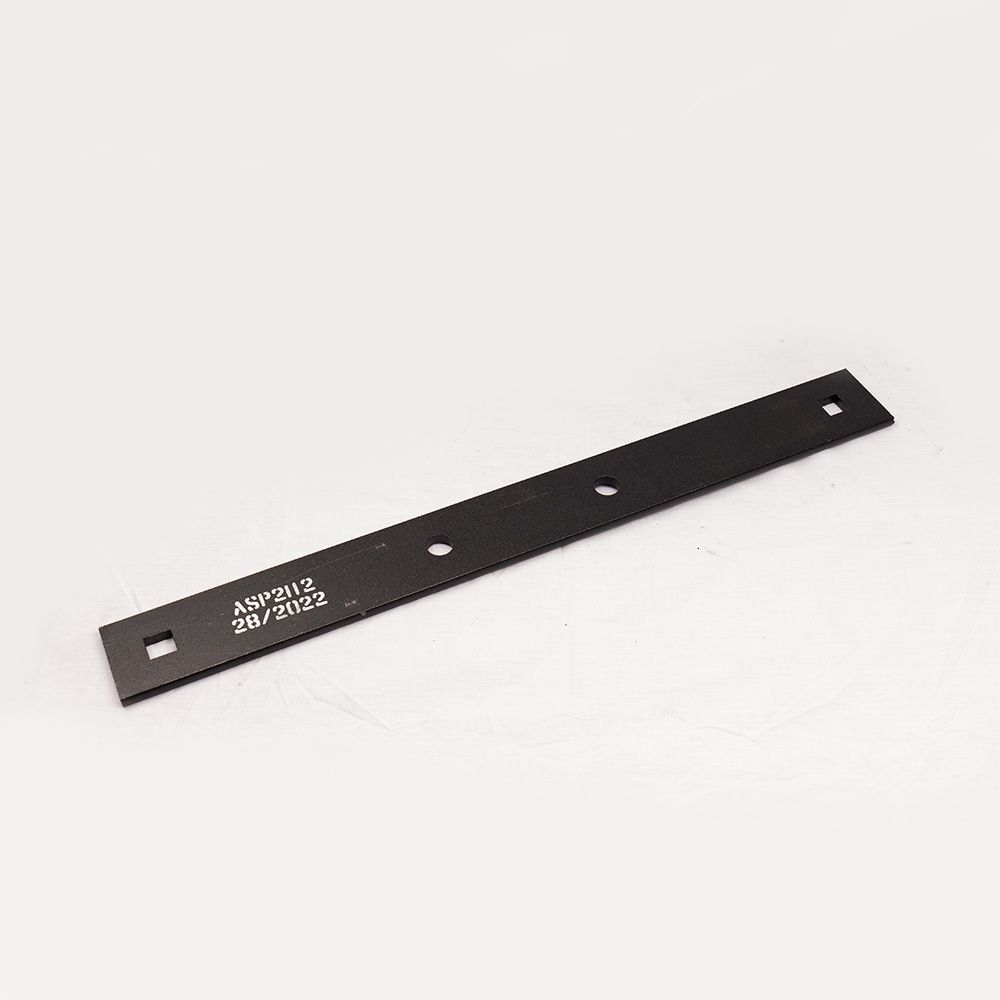

BEAM SLASHER SUPERIOR 4′ & 4′ 6″, 5′ & 8′ LXCT5 SQUARE HOLE 3.68KG

ProductName: BEAM SLASHER SUPERIOR 4′ & 4′ 6″, 5′ & 8′ LXCT5 SQUARE HOLE

ProductType: Slasher Beam 4′ & 4.6′, 5′ & 8′ LXCT5 Square Hole – Bottom Beam – 2 X 20mm MOUNTING HOLES @ 152mm CENTRES
Application: Slasher – Beam
Suitable For: Superior & Page
OEM Reference: N/A

SPECIFICATIONS

·        Thickness: 10 mm

·        Width: 75 mm

·        Length (from centre of hole): 609 mm

·        Hole Diameter: N/A

·        Blade Profile: superior beam / head flat to suit 4‘ & 4.6′, 5′ & 8’ LXCT5 square holes. 20mm mounting bolt holes @ 152mm centres

·        Step Down: N/A

·        Weight: 3.68 kg

COMPATIBILITY

·        Superior & Page –  Slasher Beam 4′ & 4.6′, 5′ & 8′ round holes. 20mm mounting bolt holes @ 152mm centres

LXCT5 & LXCT8 – CHECK MOUNTING BEFORE ORDERING

NOTE: TRIANGULAR BAR MODELS USE WITH 460mm (FROM CENTRE OF HOLE) LONG BLADES I.E BS-01602 ETC – CHECK

PRODUCTDESCRIPTION

This HeavyDuty 10 mm thick Boron Steel Slasher Beam. is a superior beam / head flat to suit 4‘ & 4.6′, 5′ & 8’ LXCT5 square holes. 20mm mounting bolt holes @ 152mm centre

Please Note: All beams length measurements are taken from the centre of the bolt blade holes…. Not an overall length. Please check mounting hole centers.

Soldindividually. Not sold as genuine.

Made inSpain. Boron Steel.

RELATEDPARTS:

BSA-S2112 Square Hole / Bottom Beam

BSA-S3393 Mounting Bolt (require 2)

BSA-100852 Nut (require 2)
