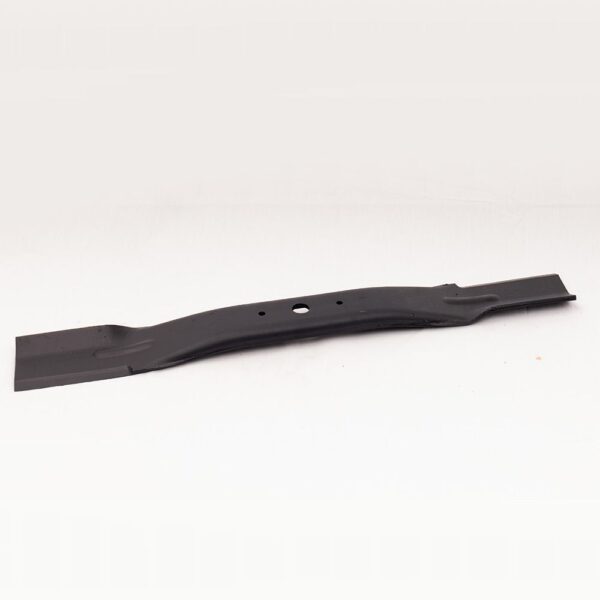

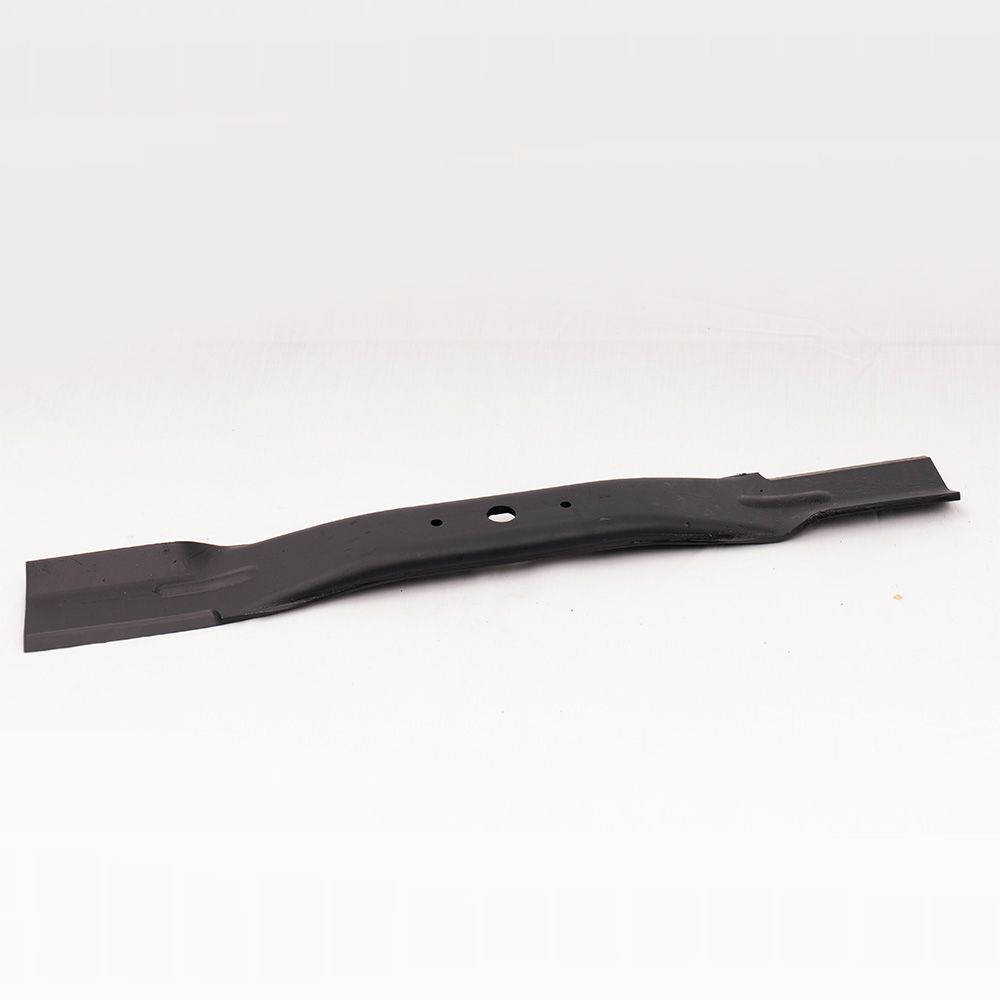

BLADE WALKER LEFT HAND SUIT 42″ DECK 1.42KG

Product Name: BLADE WALKER LEFT HAND SUIT 42″ DECK  1.42KG
Product Type: Ride On Mower Blade – Stepped & Fluted Left Hand Cut Blade
Application: Ride On Mower
Suitable For: 42″ & 62″ Walker models – Grass Handling Systems (GHS) – Zero Turn


SPECIFICATIONS

• Thickness: 5 mm
• Width: 60 mm
• Length: 560 mm ( 5.5 mm holes @ 76mm centres)
• Hole Diameter: 16 mm
• Blade Profile: Stepped & Fluted
• Rotation of Cut: LEFT Hand
• Step Down: 20 mm
• Weight: 1.42 kg

COMPATIBILITY

• 42″ WALKER -1 EACH BR-355024 & BR-355032 PER SET FOR GRASS CATCHER MODELS

   Requires 1 x BR-355024 Right Hand & 1 x BR-355032 Left Hand for GHS.

• 62″ WALKER – Side Discharge & Mulch Decks requires 3 blades per set – 3 x BR355024 right hand blades.

RELATED PRODUCTS:

Walker:  GHS

BRA-08239 Shear Bolt (2 bolts per blade)

BRA-08240 Nut

OEM REFERENCE

• 5705-4 LH & 5705-3 RH

PRODUCT DESCRIPTION

Stepped & Fluted blade, 5 mm thick, suitable for Walker GHS. – Requires 1 x BR-355024 Right Hand & 1 x BR-355032 Left Hand for GHS ( Check blade requirements)

62″ WALKER – Side Discharge & Mulch Decks requires 3 blades per set – 3 x BR355024 right hand blades

Boron Steel Ride On Mower Blade is a LEFT hand cut blade.

Sold individually.  Not sold as Genuine.

Made In Spain. Boron Blue Steel.

ALTERNATIVE SEARCH TERMS

•  Left & Right hand
• Walker mower blade
• GHS
• Left & Right
• Stepped & Fluted blade
• 42″ deck

ASP Components encourages you to check blade dimensions prior to ordering to ensure correct fitment.

BLADE WALKER LEFT HAND CUT 42″. OEM REF: 5705-4

1 EACH BR-355024 & BR-355032 PER SET FOR GRASS CATCHER MODELS

560mm LONG X 60mm WIDE, 5mm THICK. 20MM STEP & FLUTED, 5.5mm OUTER HOLES & 16mm CENTRE HOLE

USE WITH BRA-08239 SHEAR BOLT & BRA-08240 NUT

WEIGHT: 1.42KG
