BLADE JOHN DEERE & NEW HOLL.72" DECK MULCH 1.98KG
Clock Icon Order now for dispatch on Wednesday 14th October!

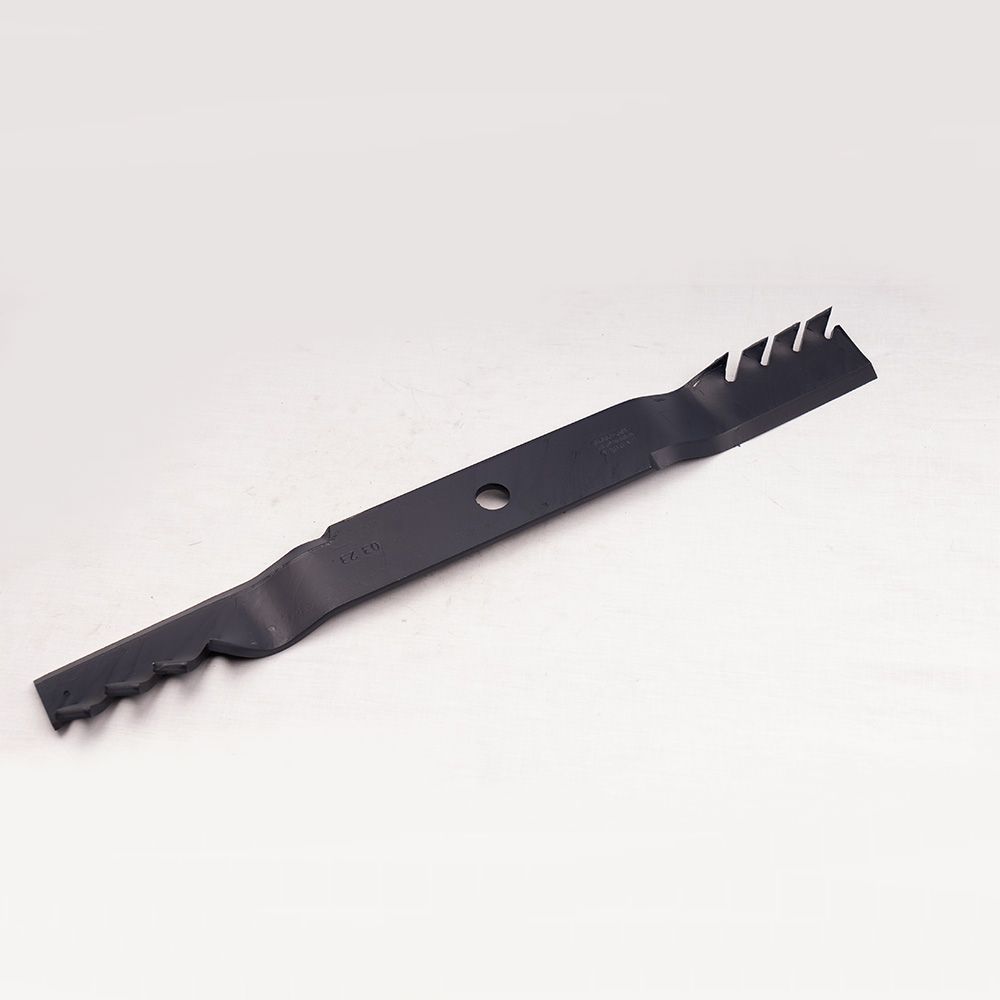

BLADE JOHN DEERE & NEW HOLL.72″ DECK MULCH 1.98KG

SKU: BR-09019 Categories: , Tag:

Product Name: BLADE JOHN DEERE & NEW HOLLAND 72″ DECK MULCH  1.98KG
Product Type: Ride On Mower Blade
Application: Ride On Mower
Suitable For: 72″ Cutting Decks


SPECIFICATIONS

  • Thickness: 7 mm
  • Width: 65 mm
  • Length: 628 mm
  • Hole Diameter: 23 mm
  • Blade Profile:  Stepped mulcher blade
  • Rotation of Cut: Right Hand Cut
  • Step Down: 13 mm
  • Weight: 1.98 kg



COMPATIBILITY

  • JOHN DEERE:  Standard Lift Blade 1445, 1545, 1565, 1585,777, 797, 4200, 4500 series, 997 Diesel & 1580 Terrain

OEM REFERENCE

  • JOHN DEERE:  M141786, M141669, M83363, EPC201693

  • New Holland: Check Dimensions. Replaces  AUB163380, (163442 – has a 20mm step the BR09019 is 10mm)



PRODUCT DESCRIPTION

Heavy Duty 7mm thick blade, suitable for various 72″ John Deere Mower Decks.

This 7 mm thick Boron Steel Ride On Mower Blade is a stepped mulcher blade.



Sold individually. Requires 3 blades for 72″ Decks. Not sold as Genuine.



Made in Spain. Boron Steel.



RELATED PARTS

John Deere:

BRA-100195SH Bolt

BRA-83665 Tension Washer



ASP Components encourages you to check blade dimensions prior to ordering to ensure correct fitment.
