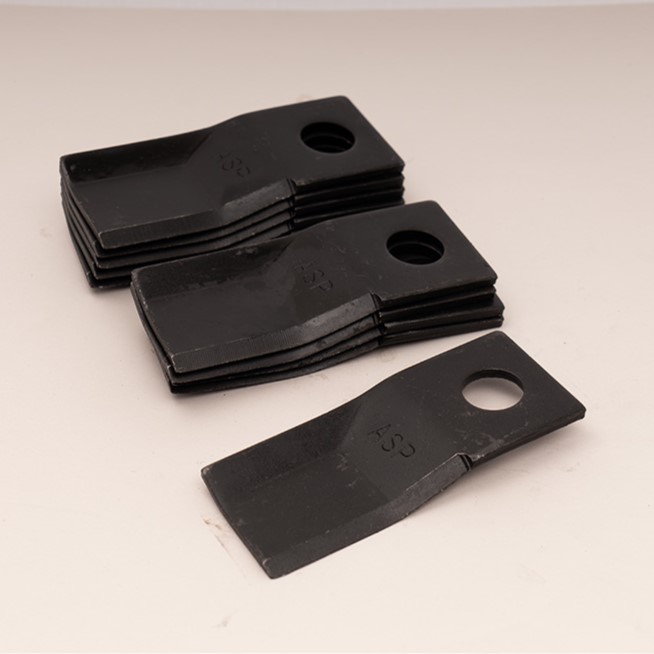

STEALTH & TRIMAX BLADE KIT (PACK OF10 BLADES) 1.68 kg

ProductName: STEALTH & TRIMAX BLADE KIT (PACK OF10 BLADES) 1.68 kg

ProductType: Swing tip blade – Stepped & Fluted -sold as a KIT
Application:Push & Finishing Mowers
Suitable For: Suits Series 2, 3 & 4 on  Stealth, Procut & Pegasus, Merlin & Snake etc.
OEM Reference: TX16084UK10, TX32205K10, Alternative for OEM Trimax Lazer blades & bolts (Will not suit the Condor)

SPECIFICATIONS

·        Thickness: 3 mm

·        Width: 50 mm

·        Length (from centre of hole): 100 mm

·        Hole Diameter: 20.5 mm

·        Blade Profile: Stepped & Fluted Left Hand Cut

·        Step Down: 8 mm

·        Weight: .14 kg

COMPATIBILITY

·         Stepped & Fluted – left hand cut  (Blade kit contains 10 blades.) (Use BRA-08755 Bolt Kit-includes 10 x bolts & lock nuts)

PRODUCTDESCRIPTION

Stepped & Fluted – left hand cut blade KIT to suit Series 2, 3 & 4 Stealth, Procut & Pegasus etc.

Soldindividually. Not sold as genuine.

Made inSpain. Boron Steel.

SWING TIP SUIT HOWARD – PACK OF 10

STEPPED & FLUTED, LEFT-HAND CUT BLADE

100mm FROM CENTER OF HOLE

20.5mm HOLE

50mm WIDE

4mm THICK

8mm STEP

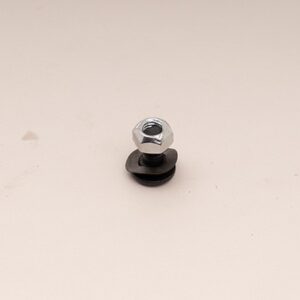

NOTE: IF USING ON STEALTH / TRIMAX MUST USE ASP BOLTS BRA-08755.
