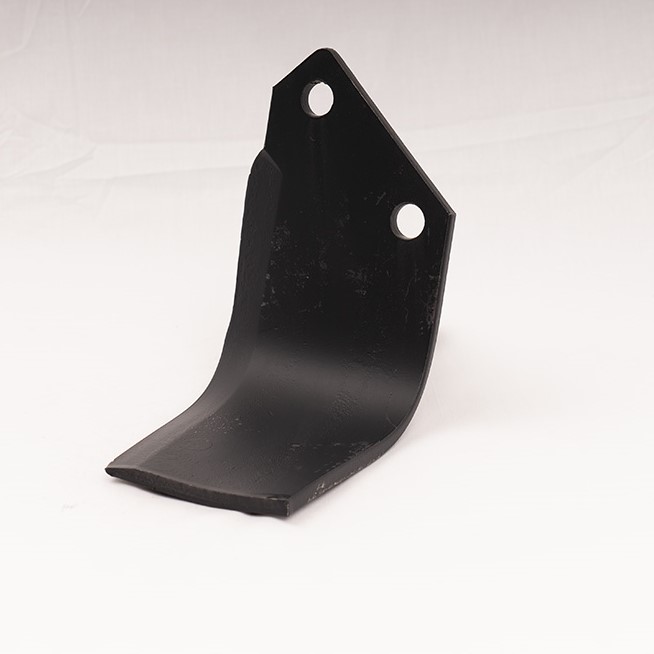

HOE BLADE – HARD FACED OPTION OF RH-08783 1.7KG SUPPLIER CODE 237004RIP

SKU: RH-08783T Categories: , , , ,

Product Name: HOE BLADE – HARD FACED OPTION OF RH-08783 1.7KG   SUPPLIER CODE 237004RIP
Product Type:  Rotary Hoe Blade
Style: Power Blade (L type)
OEM Reference:

Falc – 762719 / 20, 25.09.59 / 60,

Agrator – MR30856, MR30857,

Howard – 762719, 762720, 612719 / 20,

Krone & Kuhn – 52359600, 52359700, 52359000 / 1

SPECIFICATIONS

·        Length (A) Bolt hole side ofblade: 193 mm

·        Cutting Length (B): 135 mm

·        Thickness: 8 mm

·        Width (top of blade, bolt holeend): 105 mm

·        Hole Diameters: 16.5 mm

·        Hole Centres: 75 mm

·        Weight: 1.7 kg



Right hand

Note: lengthsA & B are measured with a square, creating a right angle



COMPATIBILITY

AGRATOR – MRP Series

FALC – F, G, GAMMA & KAPPA

HOWARD – H/Duty HR50, 60, 61 F ROTOR

KRONE & KUHN – E, EL, Kuhn-CHECK HOLE SPACING AS SOME USE 57mm NOT 75mm,  RF Krone

***MUST BUY WITH RH-08782T***


Also Available is a 10mm thick option, including Hard faced option – USE RH-08783-10 & RH-08782-10 (10mm Thick) OR RH-08783-10T & RH-08782-10T (10mm Thick Hard Faced)


 BUILT TO LAST. MADE TO PERFORM.

Upgrade your equipment with ASP premiumBoron Rotary Hoe Blades, designed for demanding Australian agriculturalconditions.

✓ High-strength Boron Steel
✓ Excellent wear resistance
✓ Longer service life
✓ Reduced downtime & replacement costs

Choose ASP Boron Steel for performance youcan rely on.

ASP Products — Trusted Since 1999 |Australian Owned & Operated

*******

You must purchase RotaryHoe Blades in equal quantities of left & Right hand.

If you order more of onehand that the other your order will be amended to equal quantities of both left& right-hand blades.


Sold individually. Not sold asgenuine.

TRADE & WHOLESALE PRICING AVAILABLE – LOGIN OR CONTACT US TO SET UP YOUR ACCOUNT

We have 35 left in stock.
