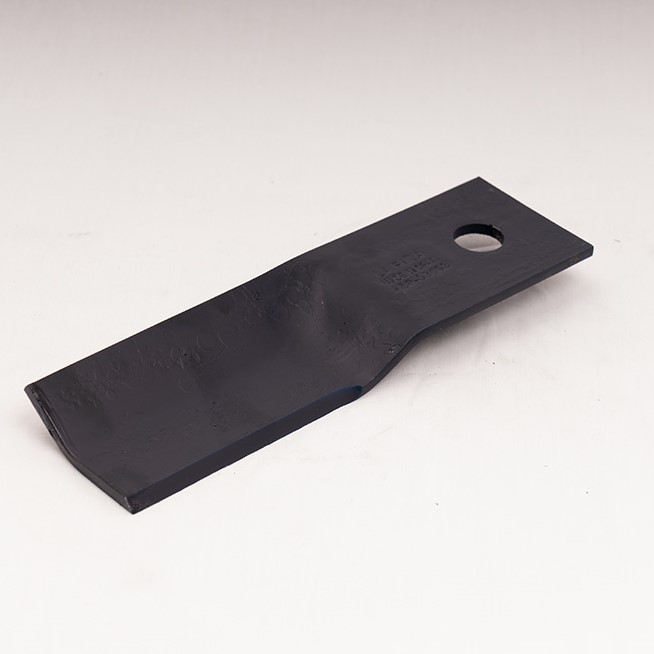

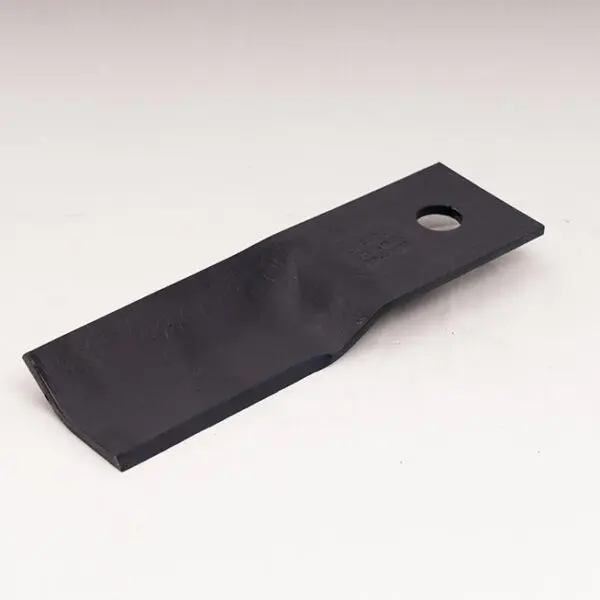

BLADE TIP SUPERIOR LH .52KG

ProductName: BLADE TIP SUPERIOR LH     .52KG

ProductType: Swing tip blade – Stepped & Fluted Left Hand  -sold each
Application: Push & Finishing Mowers
Suitable For: Suits Superior
OEM Reference: S3693

SPECIFICATIONS

·        Thickness: 5 mm

·        Width: 65 mm

·        Length (from centre of hole): 197 mm

·        Hole Diameter: 20 mm

·        Blade Profile: Stepped & Fluted Left Hand Cut

·        Step Down: 18 mm

·        Weight: .3 kg

COMPATIBILITY

·        Superior – Stepped & Fluted – left hand cut  (sold each)

USE BSA-08088 – Bolt Set – sold each – (Bolt set includes 1 x bolt, nut & washer)

PRODUCTDESCRIPTION

Stepped & Fluted – left hand cut blade to suit Superior

Soldindividually. Not sold as genuine.

Made inSpain. Boron Steel.

BLADE TIP SUPERIOR

STEP 14mm LEFT HAND CUT

OEM REF: S3693.

USE BOLT KIT: BRA-08088.

WEIGHT: 0.52KG

197.5mm LONG FROM CENTRE OF HOLE, 20.5mm HOLE, 65mm WIDE, 5mm THICK
