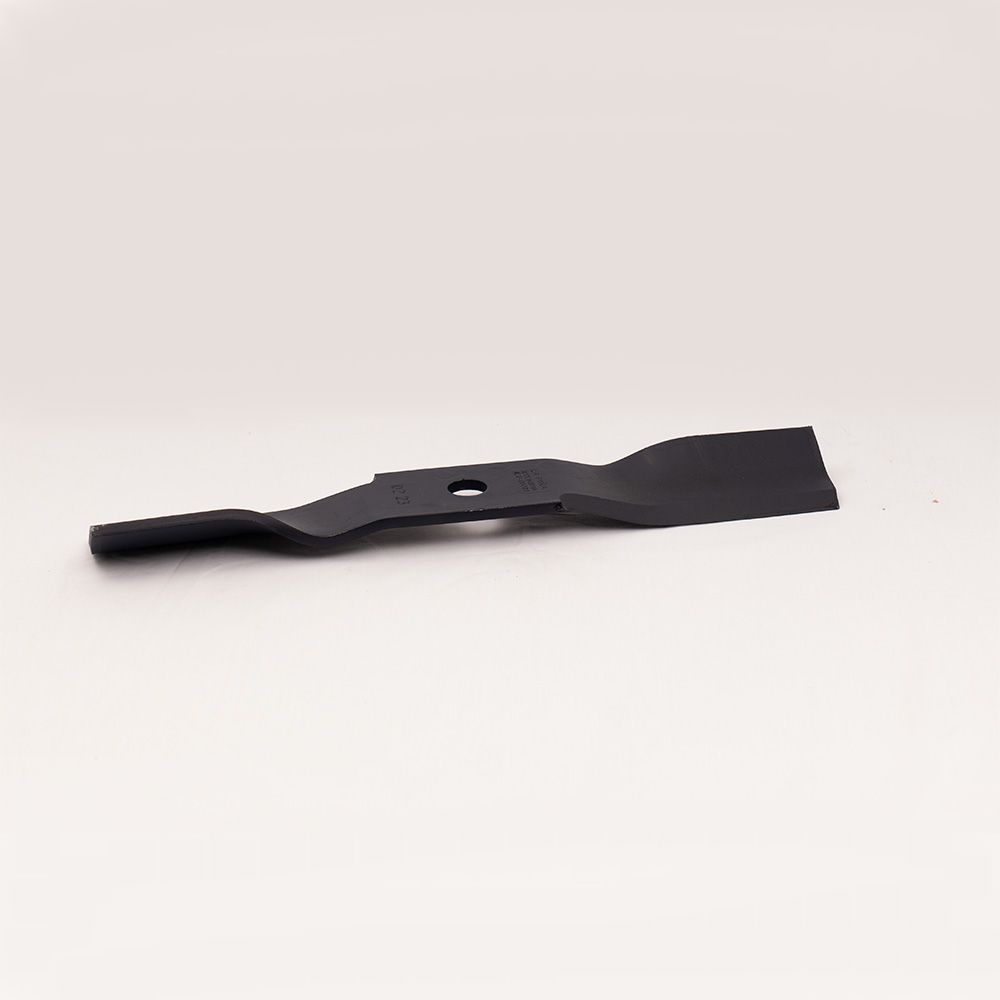

BLADE JOHN DEERE 48" DECK 1.32KG
Clock Icon Order now for dispatch on Monday 19th October!

BLADE JOHN DEERE 48″ DECK 1.32KG

SKU: BR-08701 Category: Tag:

Product Name: BLADE JOHN DEERE 48″ DECK  1.32KG
Product Type: Ride On Mower Blade
Application: Ride On Mower
Suitable For:  48″ Cutting Decks


SPECIFICATIONS

  • Thickness: 6 mm
  • Width: 65 mm
  • Length: 430 mm
  • Hole Diameter: 23 mm
  • Blade Profile: Stepped & High Lift Flute
  • Rotation of Cut: Right Hand
  • Step Down: 17 mm
  • Weight: 1.32 kg



COMPATIBILITY

  • JOHN DEERE:  48″ Deck , F620, F680, Z510A, Z645, Z710A, Z810A, Z820A, Z910A, Z915E, Z920M, 17H17B & Zg18 Walk Behinds Stepped Hi Lift Blade , Right Hand cut. Requires 3 blades per set

OEM REFERENCE:

  • JOHN DEERE: M136185, TCU21475, TCU14939, M136194, TCU30315



RELATED PARTS

John Deere:

BRA-100195SH Bolt

BRA-83665 Washer



PRODUCT DESCRIPTION

6mm thick blade, suitable for various 48″ Decks – Side Discharge.

This Boron Steel Ride On Mower Blade is Stepped & High fluted, right hand cut.



Sold individually. Requires 3 blades for 48″,  Not sold as Genuine.



Made in Spain. Boron Steel. Not sold as genuine.



ASP Components encourages you to check blade dimensions prior to ordering to ensure correct fitment.



Note: All bar blades are sold as singles, order the quantity required to make up a set.

3 blades required for 48″ decks.

$31.62 inc GST

We have 177 left in stock.

Spring add-on offer 10% off trimmer line with this order

Add discounted trimmer line now, or view the full trimmer line range.

TRIMMER LINE 2.40mm ROUND - 1.35KG SPOOL (3LB RD.095/2.4) 1.6KG 14025A
TRIMMER LINE 2.40mm ROUND - 1.35KG SPOOL (3LB RD.095/2.4) 1.6KG 14025A Professional Grade 'Lightning' Trimmer Line designed for commercial use. Suits most straight shaft trimmers / heads…
Original price was: $62.95.Current price is: $56.65. inc GST View product
TRIMMER LINE 2.40mm DIAMOND - 1.35KG SPOOL (3LB SQ.095/2.4) 1.62KG 14093A
TRIMMER LINE 2.40mm DIAMOND - 1.35KG SPOOL (3LB SQ.095/2.4) 1.62KG 14093A Professional Grade 'Lightning' Trimmer Line designed for commercial use. Suits most straight shaft trimmers / heads…
Original price was: $62.95.Current price is: $56.65. inc GST View product
TRIMMER LINE - PROFESSIONAL 2.40mm ROUND - 1.35KG SPOOL (R/D 2.4 3LB) 1.62KG
TRIMMER LINE - PROFESSIONAL 2.40mm ROUND - 1.35KG SPOOL (R/D 2.4 3LB) 1.62KG Tackle overgrown paddocks, fence lines, and thick weeds withconfidence. This 2.40mm round trimmer line is…
Original price was: $62.95.Current price is: $56.65. inc GST View product
TRIMMER LINE - PROFESSIONAL LINE SQ 2.4mm 1.35KG 3LB 1.5KG
TRIMMER LINE - PROFESSIONAL LINE SQ 2.4mm 1.35KG 3LB 1.5KG 2.4mm SQUARE / DIAMOND SECTION LINEOUR PROFESSIONAL LINE IS PRODUCED FROM A NYLON CO-POLYMER SYSTEM…
Original price was: $62.95.Current price is: $56.65. inc GST View product
TRIMMER LINE 2.67mm ROUND - 1.35KG SPOOL (3LB ROUND.105/2.67) 1.6KG
TRIMMER LINE 2.67mm ROUND - 1.35KG SPOOL (3LB ROUND.105/2.67) 1.6KG Professional Grade 'Lightning' Trimmer Line designed for commercial use. Suits most straight shaft trimmers / heads…
Original price was: $62.95.Current price is: $56.65. inc GST View product
TRIMMER LINE 2.67mm DIAMOND - 1.35KG SPOOL (3LB SQ.105/2.7) 1.62KG SQ10503
TRIMMER LINE 2.67mm DIAMOND - 1.35KG SPOOL (3LB SQ.105/2.7) 1.62KG SQ10503 Professional Grade 'Lightning' Trimmer Line designed for commercial use. Suits most straight shaft trimmers / heads…
Original price was: $62.95.Current price is: $56.65. inc GST View product
TRIMMER LINE - PROFESSIONAL LINE R/D 2.7mm 1.35kg 3LB
TRIMMER LINE - PROFESSIONAL LINE R/D 2.7mm 1.35kg 3LB PROFESSIONAL LINE R/D 2.7mm 1.35kg 3LBOUR PROFESSIONAL LINE IS PRODUCED FROM A NYLON CO-POLYMER SYSTEM…
Original price was: $62.95.Current price is: $56.65. inc GST View product
TRIMMER LINE - PROFESSIONAL LINE SQ 2.7mm 1.35KG 3LB
TRIMMER LINE - PROFESSIONAL LINE SQ 2.7mm 1.35KG 3LB 2.7mm DIAMOND / SQUARE SECTION LINEOUR PROFESSIONAL LINE IS PRODUCED FROM A NYLON CO-POLYMER SYSTEM…
Original price was: $62.95.Current price is: $56.65. inc GST View product
TRIMMER LINE 3.00mm ROUND - 1.35KG SPOOL (3LB ROUND.120/3.0) 1.62KG 16973
TRIMMER LINE 3.00mm ROUND - 1.35KG SPOOL (3LB ROUND.120/3.0) 1.62KG 16973 Professional Grade 'Lightning' Trimmer Line designed for commercial use. Suits most straight shaft trimmers / heads…
Original price was: $62.95.Current price is: $56.65. inc GST View product
TRIMMER LINE 3.00mm DIAMOND - 1.35KG SPOOL (3LB SQ.120/3.0 1.62KG) 16954
TRIMMER LINE 3.00mm DIAMOND - 1.35KG SPOOL (3LB SQ.120/3.0 1.62KG) 16954 Professional Grade 'Lightning' Trimmer Line designed for commercial use. Suits most straight shaft trimmers / heads…
Original price was: $62.95.Current price is: $56.65. inc GST View product
TRIMMER LINE 3.30mm ROUND - 1.35KG SPOOL (3lb ROLL) 1.68KG
TRIMMER LINE 3.30mm ROUND - 1.35KG SPOOL (3lb ROLL) 1.68KG Professional Grade 'Lightning' Trimmer Line designed for commercial use. Suits most straight shaft trimmers / heads…
Original price was: $62.95.Current price is: $56.65. inc GST View product
TRIMMER LINE 2.40mm DIAMOND - 2.25KG SPOOL (5LB SQ.095/2.4) 2.6KG
TRIMMER LINE 2.40mm DIAMOND - 2.25KG SPOOL (5LB SQ.095/2.4) 2.6KG Professional Grade 'Lightning' Trimmer Line designed for commercial use. Suits most straight shaft trimmers / heads…
Original price was: $103.95.Current price is: $93.56. inc GST View product
TRIMMER LINE 2.40mm ROUND - 2.25KG SPOOL (5LB ROUND.095/2.4) 2.6KG SR09505
TRIMMER LINE 2.40mm ROUND - 2.25KG SPOOL (5LB ROUND.095/2.4) 2.6KG SR09505 Professional Grade 'Lightning' Trimmer Line designed for commercial use. Suits most straight shaft trimmers / heads…
Original price was: $103.95.Current price is: $93.56. inc GST View product
TRIMMER LINE 2.67mm DIAMOND - 2.25KG SPOOL (5LB SQ.105/2.7) 2.64KG SQ10505
TRIMMER LINE 2.67mm DIAMOND - 2.25KG SPOOL (5LB SQ.105/2.7) 2.64KG SQ10505 Professional Grade 'Lightning' Trimmer Line designed for commercial use. Suits most straight shaft trimmers / heads…
Original price was: $103.95.Current price is: $93.56. inc GST View product
TRIMMER LINE - PROFESSIONAL LINE ROUND 2.4mm 2.25KG -5LB MADE IN ITALY
TRIMMER LINE - PROFESSIONAL LINE ROUND 2.4mm 2.25KG -5LB MADE IN ITALY 2.4mm ROUND SECTION LINEOUR PROFESSIONAL LINE IS PRODUCED FROM A NYLON CO-POLYMER SYSTEM DESIGNED TO…
Original price was: $103.95.Current price is: $93.56. inc GST View product
TRIMMER LINE 3.00mm DIAMOND - 2.25KG SPOOL (5LB SQ.120/3.0 2.76KG) SQ12005
TRIMMER LINE 3.00mm DIAMOND - 2.25KG SPOOL (5LB SQ.120/3.0 2.76KG) SQ12005 Professional Grade 'Lightning' Trimmer Line designed for commercial use. Suits most straight shaft trimmers / heads…
Original price was: $103.95.Current price is: $93.56. inc GST View product
TRIMMER LINE 2.67mm ROUND - 2.25KG SPOOL (5LB ROUND.105/2.7 2.6KG) SR10505
TRIMMER LINE 2.67mm ROUND - 2.25KG SPOOL (5LB ROUND.105/2.7 2.6KG) SR10505 Professional Grade 'Lightning' Trimmer Line designed for commercial use. Suits most straight shaft trimmers / heads…
Original price was: $103.95.Current price is: $93.56. inc GST View product
Placeholder
TRIMMER LINE - PROFESSIONAL3.00mm DIAMOND PRO LINE - 2.25KG SPOOL (5LB SQ.120/3.0 2.76KG) TRIMMER LINE 3.00mm DIAMOND - 2.25KG / 5lb SPOOL OUR PROFESSIONAL LINE IS PRODUCED FROM A…
Original price was: $103.95.Current price is: $93.56. inc GST View product
Placeholder
TRIMMER LINE - PROFESSIONAL LINE R/D 2.7mm 2.25KG - 5LB PROFESSIONAL LINE R/D 2.7mm 2.25KG - 5LBOUR PROFESSIONAL LINE IS PRODUCED FROM A NYLON CO-POLYMER…
Original price was: $103.95.Current price is: $93.56. inc GST View product
TRIMMER LINE 3.30mm DIAMOND - 2.25KG SPOOL 5lb SQ 3.3mm 2.7KG
TRIMMER LINE 3.30mm DIAMOND - 2.25KG SPOOL 5lb SQ 3.3mm 2.7KG Professional Grade 'Lightning' Trimmer Line designed for commercial use. Suits most straight shaft trimmers / heads…
Original price was: $103.95.Current price is: $93.56. inc GST View product
TRIMMER LINE 3.00mm ROUND - 2.25KG SPOOL (5LB ROUND.120/3.0) 2.76KG SR12005
TRIMMER LINE 3.00mm ROUND - 2.25KG SPOOL (5LB ROUND.120/3.0) 2.76KG SR12005 Professional Grade 'Lightning' Trimmer Line designed for commercial use. Suits most straight shaft trimmers / heads…
Original price was: $103.95.Current price is: $93.56. inc GST View product
Placeholder
TRIMMER LINE - PROFESSIONAL SQ 3.3mm 2.25KG - 5LB 2.7KG PROFESSIONAL LINE SQ 3.3mm 2.25KG - 5LB  2.7KGOUR PROFESSIONAL LINE IS PRODUCED FROM A NYLON…
Original price was: $103.95.Current price is: $93.56. inc GST View product
TRIMMER LINE 2.40mm ROUND - 0.45KG DONUT PACK (1LB RD .095/2.4mm) DR09501 0.52KG
TRIMMER LINE 2.40mm ROUND - 0.45KG DONUT PACK (1LB RD .095/2.4mm) DR09501 0.52KG Professional Grade 'Lightning' Trimmer Line designed for commercial use. Suits most straight shaft trimmers / heads…
Original price was: $25.41.Current price is: $22.87. inc GST View product
TRIMMER LINE 3.30mm ROUND - 2.25KG SPOOL (5LB ROUND .13/3.3 2.88KG) SR13005
TRIMMER LINE 3.30mm ROUND - 2.25KG SPOOL (5LB ROUND .13/3.3 2.88KG) SR13005 Professional Grade 'Lightning' Trimmer Line designed for commercial use. Suits most straight shaft trimmers / heads…
Original price was: $103.95.Current price is: $93.56. inc GST View product
TRIMMER LINE 4.0mm DIAMOND - 2.25KG SPOOL (5LB SQ 4.0 MM) 2.78KG
TRIMMER LINE 4.0mm DIAMOND - 2.25KG SPOOL (5LB SQ 4.0 MM) 2.78KG SQ15505 TRIMMER LINE 5LB SQ 4.0 MM DIAMOND ./ SQUARE LIGHTNING LINEPROFESSIONAL GRADE TRIMMER LINE FOR…
Original price was: $103.95.Current price is: $93.56. inc GST View product
TRIMMER LINE 2.67mm ROUND - 0.45KG DONUT PACK (1 LB RD.105/2.67mm .54KG) DR10501
TRIMMER LINE 2.67mm ROUND - 0.45KG DONUT PACK (1 LB RD.105/2.67mm .54KG) DR10501 Professional Grade 'Lightning' Trimmer Line designed for commercial use. Suits most straight shaft trimmers / heads…
Original price was: $25.41.Current price is: $22.87. inc GST View product
TRIMMER LINE - PROFESSIONAL 4mm 2.25KG -5LB ROUND MADE IN ITALY 2.78KG
TRIMMER LINE - PROFESSIONAL 4mm 2.25KG -5LB ROUND MADE IN ITALY 2.78KG 4mm ROUND 5lb SPOOL PROFESSIONAL GRADE TRIMMER LINEOUR PROFESSIONAL LINE IS PRODUCED FROM A NYLON…
Original price was: $103.95.Current price is: $93.56. inc GST View product
TRIMMER LINE 3.00mm ROUND - 0.45KG DONUT PACK (1LB RD .120/3.0mm) 0.54KG
TRIMMER LINE 3.00mm ROUND - 0.45KG DONUT PACK (1LB RD .120/3.0mm) 0.54KG Professional Grade 'Lightning' Trimmer Line designed for commercial use. Suits most straight shaft trimmers / heads…
Original price was: $25.41.Current price is: $22.87. inc GST View product
TRIMMER LINE 2.40mm DIAMOND - 0.45KG DONUT PACK (1LB SQ.095/2.4 .5KG)
TRIMMER LINE 2.40mm DIAMOND - 0.45KG DONUT PACK (1LB SQ.095/2.4 .5KG) Professional Grade 'Lightning' Trimmer Line designed for commercial use. Suits most straight shaft trimmers / heads…
Original price was: $25.41.Current price is: $22.87. inc GST View product
TRIMMER LINE 2.00mm ROUND - 0.45KG DONUT PACK (1lb) 0.50KG
TRIMMER LINE 2.00mm ROUND - 0.45KG DONUT PACK (1lb) 0.50KG Professional Grade 'Lightning' Trimmer Line designed for commercial use. Suits most straight shaft trimmers / heads…
Original price was: $25.41.Current price is: $22.87. inc GST View product
TRIMMER LINE 2.67mm DIAMOND - 0.45KG DONUT PACK (1LB SQ .105/2.7) 0.5KG
TRIMMER LINE 2.67mm DIAMOND - 0.45KG DONUT PACK (1LB SQ .105/2.7) 0.5KG Professional Grade 'Lightning' Trimmer Line designed for commercial use. Suits most straight shaft trimmers / heads…
Original price was: $25.41.Current price is: $22.87. inc GST View product
Placeholder
TRIMMER LINE - PROFESSIONAL LINE R/D 2.7mm 1LB PROFESSIONAL LINE R/D 2.7mm 1LBOUR PROFESSIONAL LINE IS PRODUCED FROM A NYLON CO-POLYMER SYSTEM DESIGNED…
Original price was: $26.73.Current price is: $24.06. inc GST View product
TRIMMER LINE 3.00mm DIAMOND - 0.45KG DONUT PACK (1LB SQUARE120/3.0) 0.5KG
TRIMMER LINE 3.00mm DIAMOND - 0.45KG DONUT PACK (1LB SQUARE120/3.0) 0.5KG Professional Grade 'Lightning' Trimmer Line designed for commercial use. Suits most straight shaft trimmers / heads…
Original price was: $25.41.Current price is: $22.87. inc GST View product
Shop all TRIMMER LINE
Compatible parts Optional add-ons
BOLT J/D DECK .095KG
BOLT J/D DECK .095KG BOLT SUIT J/DEERE F1445, M16 x 45mm FULL THREAD, GR10.9OEM:19M7489, 03245392WEIGHT: .095KG
$2.69 inc GST View product
WASHER TENSION JD & SOME HUSTLER .135KG
WASHER TENSION JD & SOME HUSTLER .135KG WASHER TENSION JD. SUIT 72" & 60" DECKS. OEM REF: M83665 M123522 WEIGHT: .135KG 16MM…
$15.96 inc GST View product

Product Inquiry Form

Contact to discuss pricing / buying options, packaging requirements and freight rates.

1Details
2Notes
This field is for validation purposes and should be left unchanged.
Name(Required)
Depot Collect

Additional information

Weight 1.32 kg
Hole Size (mm)

Blade Length (mm)

PROFILE

Blade Thicknes (mm)

Blade Width (mm)

No Price on Website

Back Order Allowed

Notify
Add a review
You must be logged in to post a review Log In
0.0
Based on 0 reviews
5
0%
4
0%
3
0%
2
0%
1
0%
0 of 0 reviews

Sorry, no reviews match your current selections

Related products

  • BLADE KUBOTA 40" & NEW HOLLAND 60" DECK 1.46KG

    BLADE KUBOTA 40″ & NEW HOLLAND 60″ DECK 1.46KG

    $35.58 inc GST
    Add to cartDone
    View Product

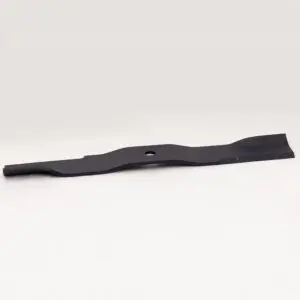

  • BLADE JOHN DEERE & NEW HOLLAND 72" DECK 2.34KG

    BLADE JOHN DEERE & NEW HOLLAND 72″ DECK 2.34KG

    $40.10 inc GST
    Add to cartDone
    View Product

  • BLADE ISEKI & MASSEY FERGUSON 72" DECK 1.88KG

    BLADE ISEKI & MASSEY FERGUSON 72″ DECK 1.88KG

    $35.25 inc GST
    Add to cartDone
    View Product

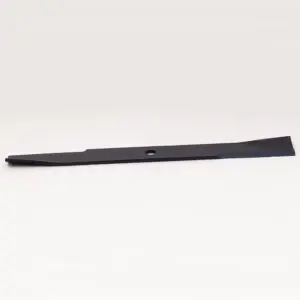

  • BLADE SUIT 72" TORO REAR DISCHARGE DECK - NO FLUTE OPTION 1.76KG
