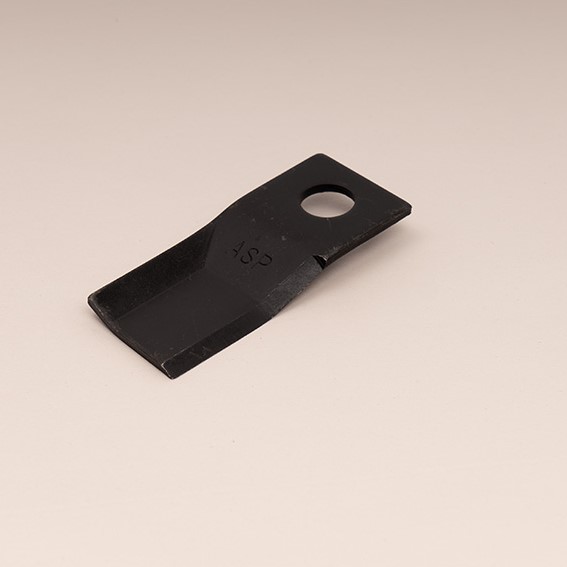

BLADE JARRETT & HOWARD TIP S2 STEALTH .16KG

ProductName: BLADE JARRETT & HOWARD TIP S2 STEALTH  .16KG

ProductType: Swing tip blade – Stepped & Fluted -sold each
Application:Push & Finishing Mowers
Suitable For: Suits Jarrett & Howard
OEM Reference: 43751

SPECIFICATIONS

·        Thickness: 4 mm

·        Width: 50 mm

·        Length (from centre of hole): 100 mm

·        Hole Diameter: 20.5 mm

·        Blade Profile: Stepped & Fluted Left Hand Cut

·        Step Down: 8 mm

·        Weight: .16 kg

COMPATIBILITY

·        Jarrett – Stepped & Fluted – left hand cut  (sold each)

USE BSA-43752 – Bolt Set – sold each – (Bolt set includes 1 x bolt, nut & washer)

PRODUCTDESCRIPTION

Stepped & Fluted – left hand cut blade to suit Jarrett & Howard

Soldindividually. Not sold as genuine.

Made inSpain. Boron Steel.

SWING TIP SUIT HOWARD & JARRETT

STEPPED & FLUTED, LEFT-HAND CUT BLADE

100mm FROM CENTER OF HOLE

20.5mm HOLE

50mm WIDE

4mm THICK

8mm STEP

USE WITH BSA-43752 FOR JARRETT

IF USING ON STEALTH / TRIMAX MUST USE ASP BOLTS BRA-08755.

WEIGHT:   .16KG (REPLACES BS-43751)
